  • GAUGE BLOCK METAL

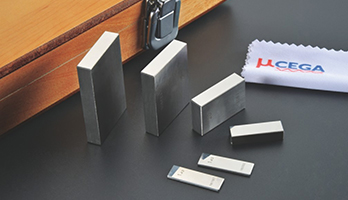

GAUGE BLOCK METAL

GAUGE BLOCK METAL

  • Features:Metal

  • Proportion:7.8

  • Hardness:HRC62-64℃

  • Themal expansion degree:11.5



  • Characteristic

  • Gauge is frequently-used tool for linear measurement. Used to adjust, inspect precision products and instrument.

  • Gauge can be used individually or combined, hardness is HRC62-64℃.

  • Gauge is non-magnetic and with special heat treatment to stabilize the size.



  • Parameter

Order No.ModelBlocks Qty.Precision radeNominal dimensionsDimensional lncrementQty.of Each
80010-32-0YK-516-32-H03201.005
1.0.1~1.09
1.1~1.9
1~10
20，30，50		/
0.01
0.1
1
/		1
9
9
10
3
80010-32-1YK-516-32-H1321
80010-32-2YK-516-32-H2322
80010-38-0YK-516-38-H03801.005
1.0.1~1.09
1.1~1.9
1~10
20~100		/
0.01
0.1
1
10		1
9
9
10
9
80010-38-1YK-516-38-H1381
80010-38-2YK-516-38-H2382
80010-47-0YK-516-47-H04701.005
1.0.1~1.19
1.2~1.9
1~10
20~100		/
0.01
0.1
1
10		1
19
8
10
9
80010-47-1YK-516-47-H1471
80010-47-2YK-516-47-H2472
80010-87-0YK-516-87-H0870
1.001~1.009
1.01~1.49
0.5~24.5
10~100
0.001
0.01
0.5
10

9
49
19
10
80010-87-1YK-516-87-H1871
80010-87-2YK-516-87-H2872
80010-103-0YK-516-103-H01030
1.005
1.01~1.49
0.5~24.5
25~100
/
0.01
0.5
25
1
49
49
4
30010-103-1YK-516-103-H11031
30010-103-2YK-516-103-H21032
30010-112-0YK-516-112-H01120
1.005
1.001~1.009
1.01~1.49
0.5~24.5
25~100
/
0.001
0.01
0.5
25
1
9
49
49
4
30010-112-1YK-516-112-H11121
30010-112-2YK-516-112-H21122
